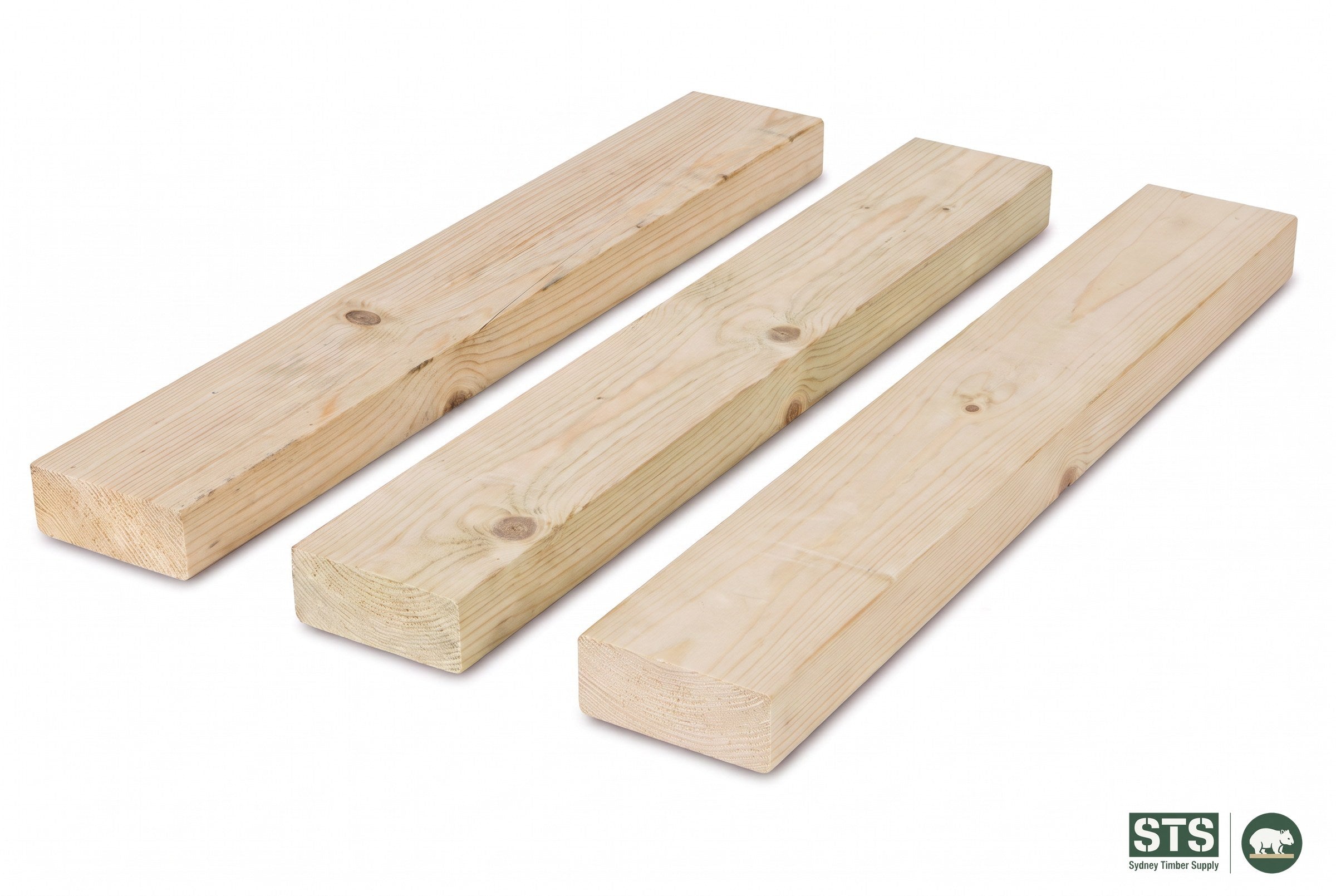

Untreated MGP10 pine framing, Sydney Timber Supply product photography of the 90 x 35 mm profile. Representative image - not a photograph of the exact listed profile size.

90x45 Untreated Pine Framing

2.4 m
$4.45 + GST $4.90 incl. GST per LM 2.4 m board: $11.75 incl. GST each
Skip to product information
Untreated MGP10 pine framing, Sydney Timber Supply product photography of the 90 x 35 mm profile. Representative image - not a photograph of the exact listed profile size.
  • Untreated MGP10 pine framing, Sydney Timber Supply product photography of the 90 x 35 mm profile. Representative image - not a photograph of the exact listed profile size.

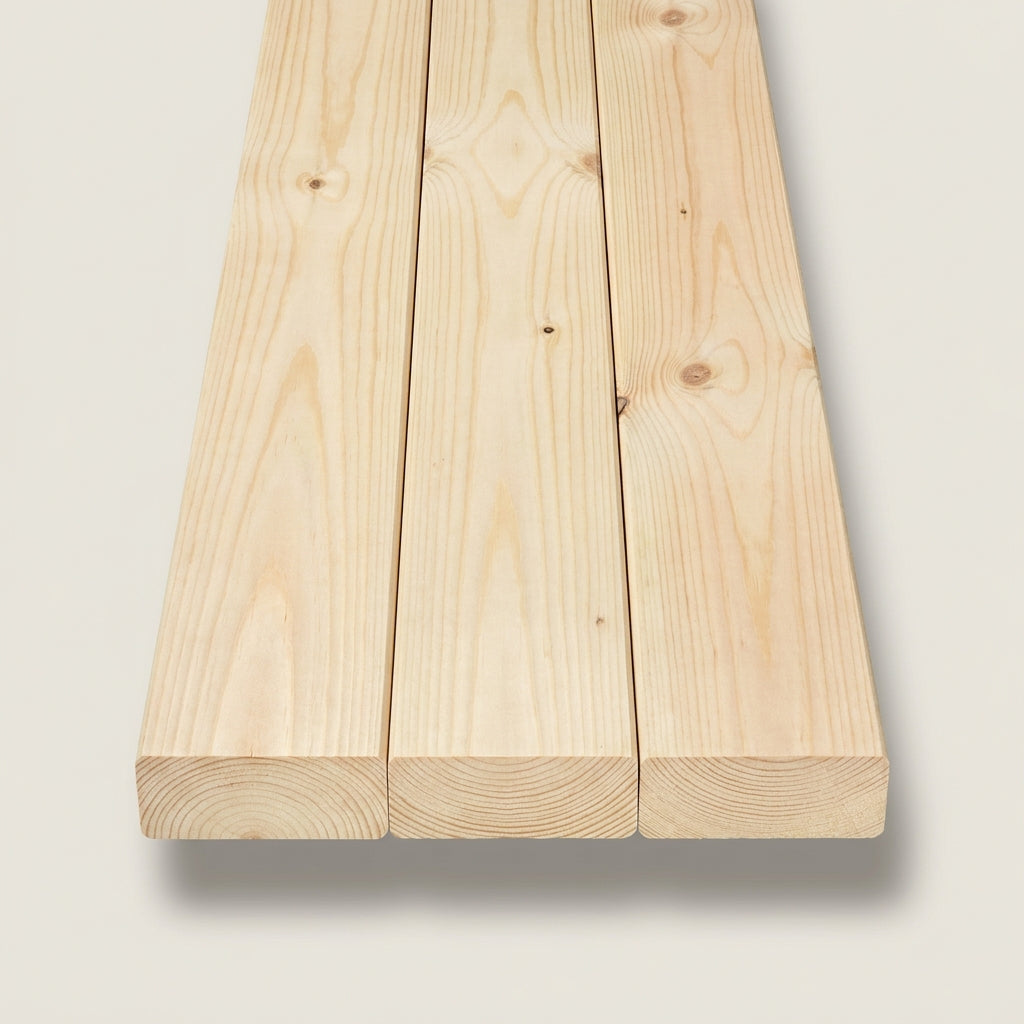

  • Illustrative view of untreated 90 x 45 mm MGP10 pine framing - digitally generated illustration, not a photograph of the supplied product.
  • Untreated MGP10 pine framing, Sydney Timber Supply product photography of the 90 x 35 mm profile. Representative image - not a photograph of the exact listed profile size.
  • Illustrative view of untreated 90 x 45 mm MGP10 pine framing - digitally generated illustration, not a photograph of the supplied product.

Images are for illustration purposes only. Timber is a natural material; colour, grain and appearance will vary between boards.

90x45 Untreated Pine Framing

90x45 Untreated Pine Framing

$4.45 + GST $4.90 incl. GST per LM 2.4 m board: $11.75 incl. GST each
Taxes included.

Priced per lineal metre. Board price = length × LM rate. Quantity below = number of boards.
Board length
Selected length
2.4 m
Boards
1
Total LM
2.4 m
Subtotal (inc. GST)
$11.75

90x45 mm Untreated Pine is the most common stud and general framing size used across internal, weather-protected building work: stud walls, noggings and general carpentry framing where the timber will remain dry and out of ground contact for the life of the structure.

Untreated pine has a short service life if exposed to the weather or ground, which is why this product is supplied specifically for internal, protected framing. Market listings at this size are predominantly MGP10 structural grade, the industry-standard stress grade for domestic house framing in Australia, milled from plantation-grown radiata pine.

Sold in set board lengths with the price per length shown in the buy box. Pack and bulk quantities are quoted against current supplier availability.

Timber calculator

Calculating for: 90x45 Untreated Pine Framing

Calculator mode
Area to linear metres

Enter your measurements and select Calculate to see an estimate.

How this is calculated

Cover width (m) = (board width + gap) ÷ 1000

Linear metres required = area ÷ cover width

Linear metres with wastage = linear metres × (1 + wastage ÷ 100)

Boards required = round up (linear metres with wastage ÷ board length)

Total linear metres supplied = boards required × board length

Reverse: estimated coverage area = linear metres × cover width

Estimates only. Confirm final quantities against your measured plans and the product's actual cover width before ordering.

Available sizes

Each size is its own product with its own pricing and stock. Selecting a size takes you to that product.

Specifications

Species Untreated Pine
Treatment Untreated
Grade MGP10
Nominal dimensions 90 × 45 mm
Selling unit Per linear metre (LM)

Need a different length, grade or quantity? Request a quote.

Guidance

Working with this timber

Technical profile

From supplier documentation: untreated structural pine is machine graded MGP10 and tested to Australian Standards, milled from sustainably grown plantation timber. Untreated pine is for dry, protected internal use only.

Applications

Stud walls, internal partitions, noggings, blocking and general internal carpentry.

Installation
  • Store framing flat, fully supported and dry before use.
  • Machine graded structural pine is used in accordance with the relevant framing standards and project engineering; fix per standard framing practice.

Maintenance
  • Keep untreated pine dry and out of ground contact for the life of the structure.
  • Inspect exposed treated pine periodically and maintain surface coatings where used.

Delivery

Delivery is quoted per order based on load, length and access. See Delivery And Pickup for coverage areas.

Pickup

Pickup is available for confirmed orders; arrangements and location details are confirmed at order stage.

Documents and downloads

Product documents are added as they are confirmed with our suppliers.

Need more than listed?

Different lengths, grades or bulk quantities

  • Long-length and mixed-length orders
  • Pack and pallet pricing
  • Supply confirmed with our suppliers before you pay
Request A Quote

Common questions

How is this timber sold?

This product is sold per linear metre (LM). See our LM and m² guide for how that works.

When will pricing and stock show?

Products go live as supplier pricing and availability are confirmed. Anything not yet live can be quoted.

Can I pick up?

Pickup is available for confirmed orders. Pickup arrangements are confirmed at order stage.
